ECLIPSE MFD
DISCONTINUED

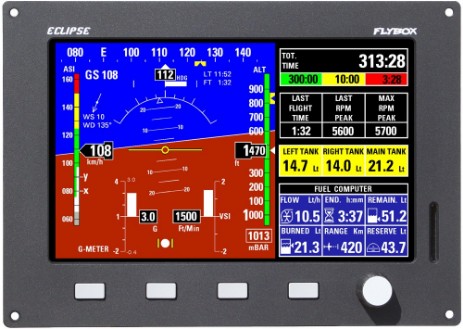

Eclipse IFIS
- Cod. 701030

ECLIPSE MFD is a
Multi Function Device, paired with a main ECLIPSE unit (EIS, PFD o IFIS) allows to visualize the all the same data switching through the screens also on the copilot side.

- MFD page (Multi Funciton Device)

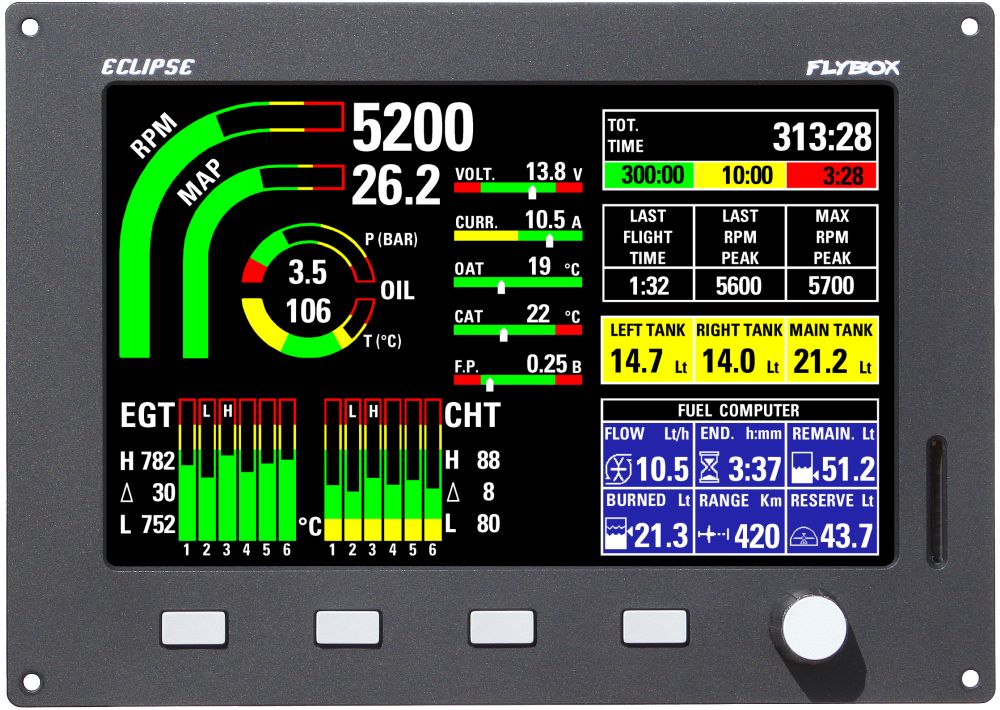

The Eis page is composed by all the engine parameters, the hour meters section and the fuel management section.
ECLIPSE  MFD, connected to a main ECLIPSE unit (EIS, PFD or IFIS) permits also  showing all data on the copilot side. This version has the same design  of the other 3 ECLIPSE models but it does not have any sensors  integrated: it shows all data available on the main ECLIPSE to which is  connected. Like the other models you can choose between different  screens depending on your personal preferences.
Technical specifications:
  • Dimensions: 196 x 139 x 60 mm
  • Weight: 900 g
  • Operating temperature range: -20~+70 °C
  • Supply voltage: 12~15 Vdc
  • Supply current: 1 A
  • Electrical connections using D-Sub connectors
  • Software upgradable by means of SD card
