Vigilus for Edge Performance engines
Price: 1.190,00 €
(Price exc.Vat)
Vigilus EP (Edge Performance engines)
- Cod. 651010

See optionals from Components tab below.

VIGILUS, combined with the remote module, is the instrument that allows a complete management of the engine parameters and on board fuel. It can be installed in a 3-1/8” (80mm) standard hole.
All the available data are divided into more pages, with graphical interface designed for maximum readability.
This version suite the Edge Performance engines and fully configurable in terms of alarms and audio alerts, that are activated as soon as a parameter exceeds the minimum or maximum limit set.

Vigilus is structured to have five different screens and through the functions menu is possible to visualize a graphic datalogger, as shown below.
Engine informations: RPM, MAP, Oil pressure, Oil temperature, 4 EGT, 2 CHT, Coolant temperature, Fuel pressure, Throttle position, Air fuel ratio, OAT, IAT

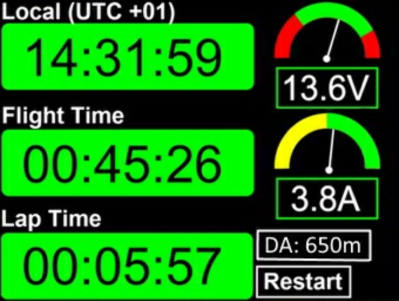

Flight Timer: Local Time (UTC corrected), Flight Time, Chronometer, Volt, Ampere, Density altitude
Temperature page: A graphical representation of the engine with the display of temperatures, pressures
Hour meters: Total accumulated time by the engine, time run in green-yellow-red zone, last flight time, max peak reached in the last flight, max peak reached ever by the engine
Video: Up to 3 composite Video input with optional Cod 653000 Video Grabber
Fuel management: 3 capacitive or resistive televel input, Optional Fuel Computer (will require a software key) with Flow Meter, Endurance, Remaining, Burmed, Range and Q.ty to destination (require GPS connection)
Datalogger: a 200-hour memory stores all the information provided by Vigilus with 1 second sampling and divided for each flight. The data are easy to scroll and analyse with a graphic display and to download with a USB key.
Vigilus EP is available for:

- Edge Performance Rotax Engines.
- Edge Performance Yamaha Engines.

ENGINE FUNCTIONS:
  • Engine RPM
  • MAP
  • Oil pressure
  • Oil temperature
  • 4 EGT inputs
  • 2 CHT inputs
  • Coolant temperature
  • Fuel pressure
  • Throttle position
  • AFR
  • Gearbox temperature (Yamaha)
  • OAT (Outside Air Temperature)
  • IAT
  • Ignition timing (Yamaha EpEX)
  • Voltmeter
  • Amperometer
  • Hour-meter, divided also by time in green, yellow and red zones
  • Peak RPM memories (last flight RPM peak and max RPM ever)
  • Flight Chronometer
  • Local Time-UTC Time (GPS connection required)
  • 3 Composite video input (with the optional Video Grabber cod. 653000)
  • 2 inputs for remote switches
  • Density Altitude

    FUEL MANAGEMENT FUNCTIONS:
  • Fuel  computer (fuel flow, endurance, remaining fuel, burned fuel, range and  reserve at destination). It's possible to activate 3 alarms for the remaining fuel, time to empty and for balancing tanks.
When a measure  drops below its setpoint the alarm is activated on both display and/or audio out tone or vocal alert.
The Fuel Computer functions will require the optional Fuel Computer Activation Key cod. 651055.
  • 3 fuel level sensor inputs with calibration for capacitive and resistive senders

   OTHER FUNCTIONS:
  • 200 hours Data Logger with integrated Graphic Data Viewer and possibility to export data
  • Software upgradable by means of USB pen drive
  • Density Altitude calculation

    ALARMS:
  • Engine alarms are activated when the relative measurement is out of range, they can be both displayed and on the audio out tone or voice alert message.
Technical specifications:
  • Dimensions: 86x86x22 mm (Vigilus)
    135x79x20 mm (Remote Module)
  • Weight: 185 g
  • Operating temperature range: -20~+70 °C
  • Supply voltage: 12~30 Vdc
  • Supply current: 200 mA
  • 3.5” TFT color LCD screen.
  • Display brightness: 1000nits, adjustable.
  • Standard 3 1/8” (80mm) panel mount
  • Audio LineOut for intercom
  • 2 CAN Bus communication interfaces
  • GPS input: standard RS-232, data format: NMEA-0183, sentences required: $GPRMC and $GPRMB
  • 1 USB port
  • Internal storage for 200 hours of datalogger
The following wiring and probes are available
- Cod. 652020 Wiring for Vigilus EP and Remote Module
- Cod. 601010 EGT probe with 2.5 m cable + coupling to weld
- Cod. 601013 Pre-wired cable for EGT probes
- Cod. 601020 OAT probe (Outside air temp.) with 2.5 m cable
- Cod. 601030 CAT probe (Rotax airbox air temp.), 10x1 thread and 2.5 m cable
- Cod. 651055 Vigilus Fuel Computer Page Software Activation Key
- Cod. 601041 Fuel pressure transducer with 2.0 m cable + fitting
- Cod. 601060 Ammeter probe +/- 50 A
- Cod. 601061 Ammeter probe +/- 100 A
- Cod. 602000 Oil pressure probe, Rotax 4-20mA compatible, with 1/8" NPT male thread
- Cod. 601070 Color camera
- Cod. 603000 Professional crimping tool
- Cod. 653000 Vigilus Video Grabber
- Cod. 654000 Vigilus GPS Receiver
