Eclipse PFD
- Cod. 701020

See optionals from Components tab below.

ECLIPSE PFD is a single screen instrument that provides you all the flight data, featuring an alerting system with visual and vocal alarms for an improved level of safety.
The instrument has a one page complete and easy to use interface.

- PFD page (Primary Flight Display)

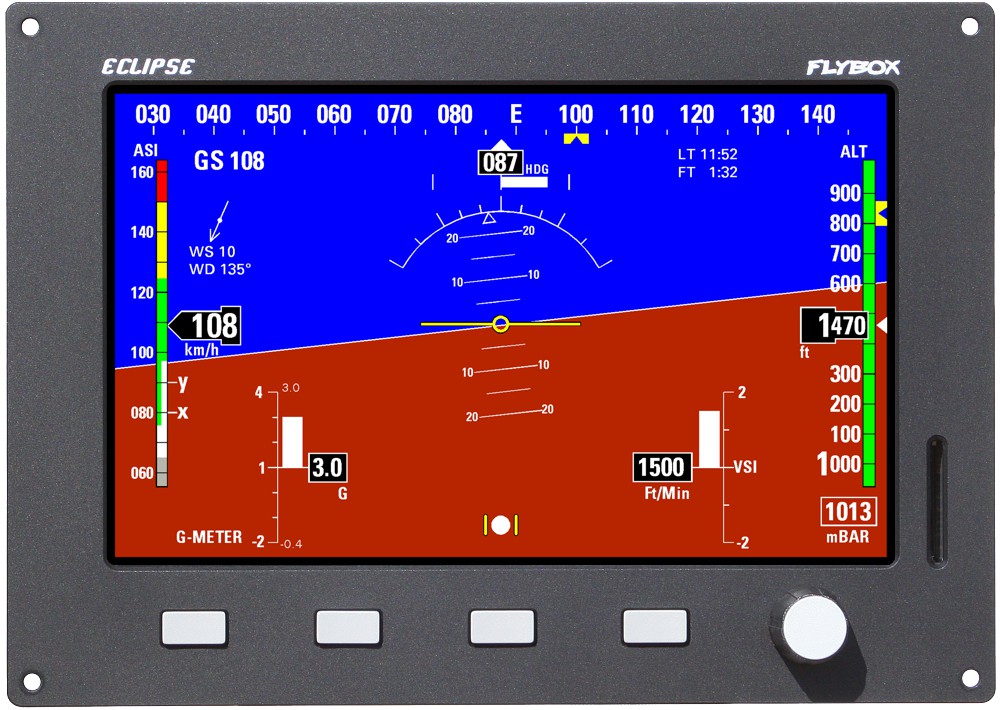

The PFD page has a full page attitude indicator that enhances all the flight data in a single screen.
  • Artificial horizon
  • Airspeed tape
  • Altitude tape
  • Heading tape
  • Vertical Speed Indiator
  • G-meter with peak memory
  • Slip indicator
  • Turn rate indicator
  • Bugs may be set for heading and altitude
  • 3 video inputs for color cameras (video format: PAL composite)
  • GPS receiver included
  • Data logger with integrated graphic data viewer
  • Intercom audio out
  • Software upgradable by means of SD card

   Alarms are activated when the relative measurement is out of range, they can be both displayed and on the audio out tone or vocal alert.

  • G-meter
  • Max altitude alarm
  • Overspeed alarm
Technical specifications:
  • Dimensions: 196 x 139 x 60 mm
  • Weight: 900 g
  • Operating temperature range: -20~+70 °C
  • Supply voltage: 12~15 Vdc
  • Supply current: 1 A
  • Electrical connections using D-Sub connectors
  • Software upgradable by means of SD card
The following wiring and probes are available for Eclipse IFIS

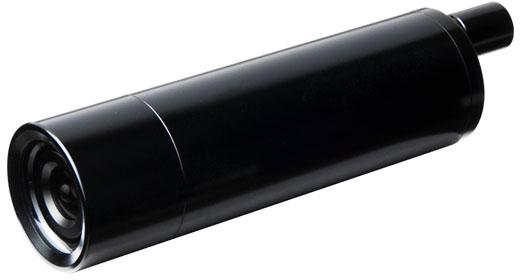

- Cod. 601070 Color camera - 149.00 (exc. VAT)

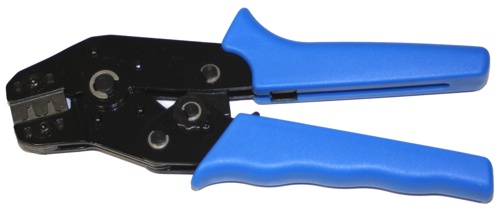

- Cod. 603000 Professional crimping tool - € 39.00 (exc. VAT) (click to go to product page)

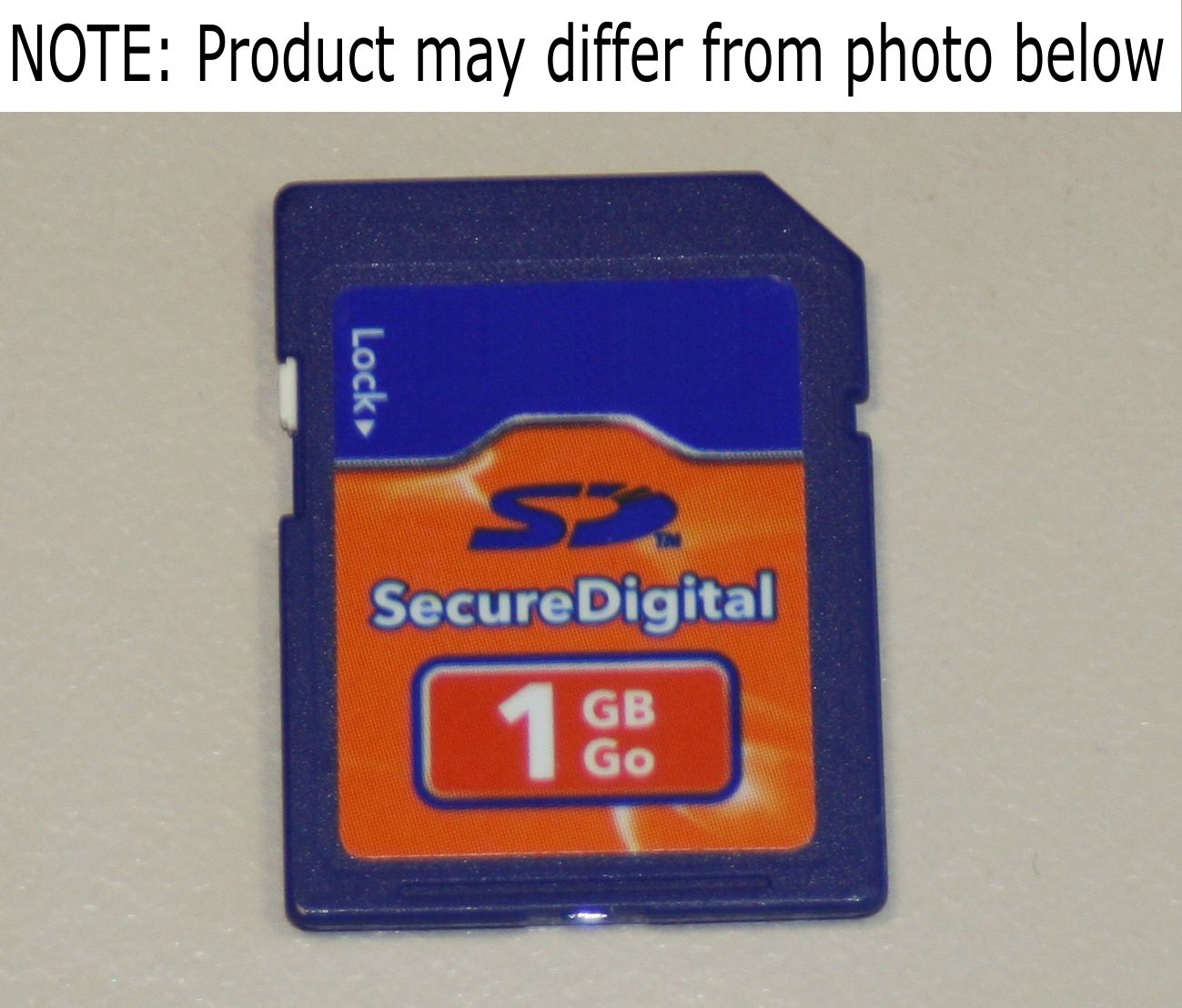

- Cod. 703010 SD Card 2GB for ECLIPSE - 8.00 (exc. VAT)
- Cod. 703020 Battery Backup
