My-EMS
Thanks to the experience given by the production of 3 very different and complete Engine Monitoring Systems, with our last product we wanted to satisfy the needs of every pilot who flies now, but still has a piece of heart linked to the tradition.
My-EMS will be the perfect solution for all those who proudly state that round is better.
It is the perfect solution for all the pilots who want everything under control despite the reduced cockpit space, and for those who wish to keep the whole system as light as possible.
Equipped with customizable graphic and audio alarms, My-EMS delivers real-time information precisely when it's needed most, minimizing distractions during critical moments in flight.
Seamless Integration: Our state-of-the-art system boasts an effortless installation process, fitting neatly into any 3-1/8” (80mm) cut-out on your instrument panel.
Moreover, it doesn’t need an external module for probes connection. Upgrading has never been so cost-effective.
Engineered with precision, our system is enriched with an array of advanced features meticulously tailored to cater to the diverse needs of pilots. From the simplest to the most sophisticated preferences, each of the 4 version of "MY-EMS" offers a user-friendly interface that ensures seamless navigation and accessibility to essential functions, empowering pilots with unparalleled control and insight.
My-EMS Base, Plus and Pro are compatible with all the injected and naturally aspirated Rotax Engines, and can be interfaced with almost all the engines on the market.
My-EMS CRX is compatible with the Rotax 503 And 582 and Vittorazi Cosmos, making it the perfect solution for all the microlight powered aircrafts.
My-EMS Plus
My-EMS Basic
€704.00
(Price Exc. Vat)
€774.00
(Price Exc. Vat)
My-EMS Pro
€829.00
(Price Exc. Vat)
- RPM
- MAP
- Oil pressure
- Oil temperature
- 4 CHT inputs
- 4 EGT inputs
- Fuel pressure
- CAT (Carburetor/AirBox Temperature)
- Voltmeter
- 4 Hour-meters
- 2 Peak Engine RPM memories
- Flight Chronometer
- Local Time-UTC Time (GPS connection required)
- 2 inputs for remote switches
- 2 fuel level sensor inputs with calibration for capacitive and resistive senders.
- Easy software update by means of USB pen drive
- Alarms output
Everything in Basic
+

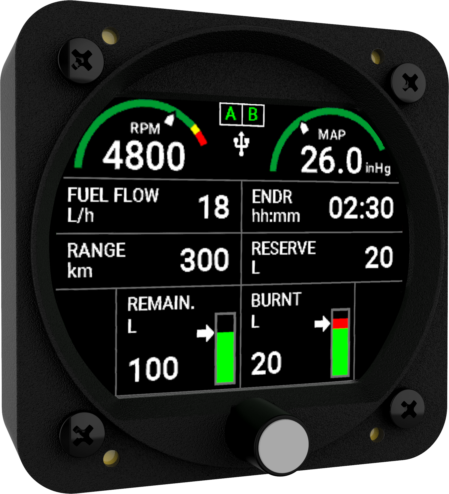

- Fuel computer (fuel flow, endurance, remaining fuel, burned fuel, range and reserve at destination). It's possible to activate 3 alarms for the remaining fuel, time to empty and for balancing tanks. When a measure drops below its setpoint the alarm is activated on both display and/or audio out tone or vocal alert.
Everything in Plus
+

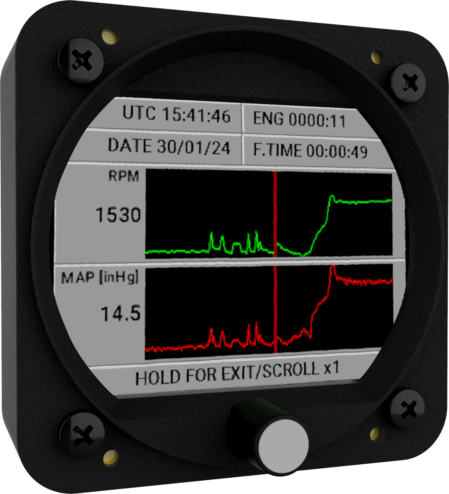

- 100 hours Data Logger with 1 Hz data sample, integrated Graphic Data Viewer and possibility to export data

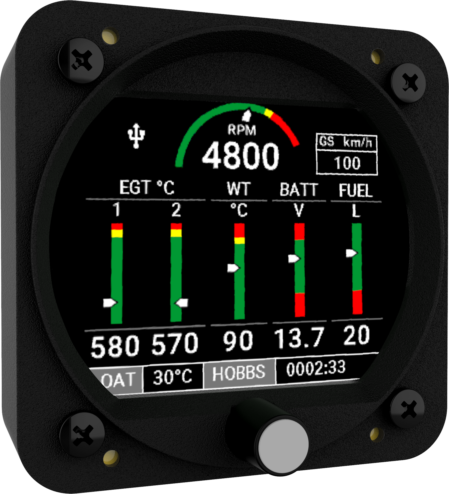

My-EMS CRX
EngiMaster Fixed Wing - Vertical
Cod. 661000FV
EngiMaster Rotary Wing - Vertical
Cod. 661000RV
Screen for Rotary Wings
Screens for Fixed Wings

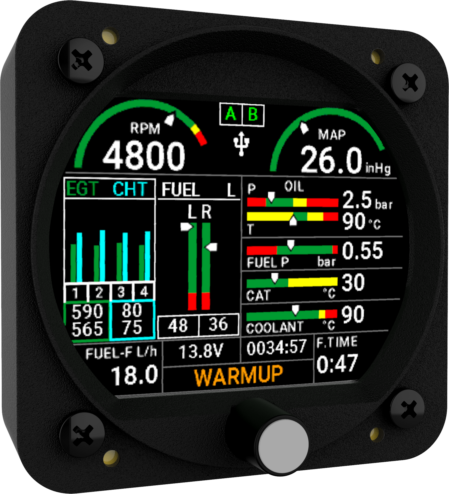

- In the main screen you can see: Rotor RPM, Engine RPM, MAP, Oil, Pressure and Temp, Coolant temp, EGTs, CHTs, Fuel pressure and quantity.
- The second screen features Volt, Amp, IAT and OAT gauges, as well as the different Hobbs meters measures.
- The third screen (datalogger) features an easy to use data viewer which allows to scroll through all the engine and optional probes collected data.
My-EMS is available for:
- Engines with carburator.
- Engines with injection.
ENGINE FUNCTIONS:
- Engine RPM
- MAP with integrated sensor
- Oil pressure
- Oil temperature
- 4 CHT inputs
- 4 EGT inputs
- Fuel pressure
- CAT (Carburetor/AirBox Air Temperature)
- Voltmeter
- Hour-meter, divided also by time in green, yellow and red zones
- Peak Engine RPM memories (last flight RPM peak and max RPM ever)
- Flight Chronometer
- Local Time-UTC Time (GPS connection required)
- 2 inputs for remote switches
FUEL MANAGEMENT FUNCTIONS:
- Fuel computer (fuel flow, endurance, remaining fuel, burned fuel, range and reserve at destination). It's possible to activate 3 alarms for the remaining fuel, time to empty and for balancing tanks.
The Fuel Computer functions will require the optional Fuel Computer Activation Key cod. 661000.
- 3 fuel level sensor inputs with calibration for capacitive and resistive senders.
OTHER FUNCTIONS:
- 200 hours Data Logger with integrated Graphic Data Viewer and possibility to export data
- Software upgradable by means of USB pen drive
- Data sampling 20 Hz
ALARMS:
- Engine alarms are activated when the relative measurement is out of range, they can be both displayed and on the audio out tone or voice alert message.
Technical specifications:
- Dimensions: 125 x 83,7 x 18 mm (Display unit); 135 x 79 x 20 mm (Remote Module)
- Weight: 185 g + 180 g
- Operating temperature range: -20~+70 °C
- Supply voltage: 12~30 Vdc
- Supply current: 260 mA
- 4.3” TFT color LCD screen.
- Display brightness: 1000 nits, adjustable.
- Audio LineOut for intercom
- 2 CAN Bus communication interfaces
- GPS input: standard RS-232, data format: NMEA-0183, sentences required: $GPRMC and $GPRMB
- 1 USB port
- Internal storage for 200 hours of datalogger
The following wiring and probes are available
- Cod. 661055 EngiMaster Fuel Computer Page Software Activation Key
