SKYSENSE AS
SkySense AS 57mm
Cod. 900057
SkySense AS 80mm
Cod. 900080
See included and optional accessories
in the Components tab at the bottom
of the page
SkySense AS combines the three primary flight instruments every pilot uses the most, Airspeed Indicator, Altimeter and Vertical Speed Indicator, inside a single ultra-thin digital instrument.

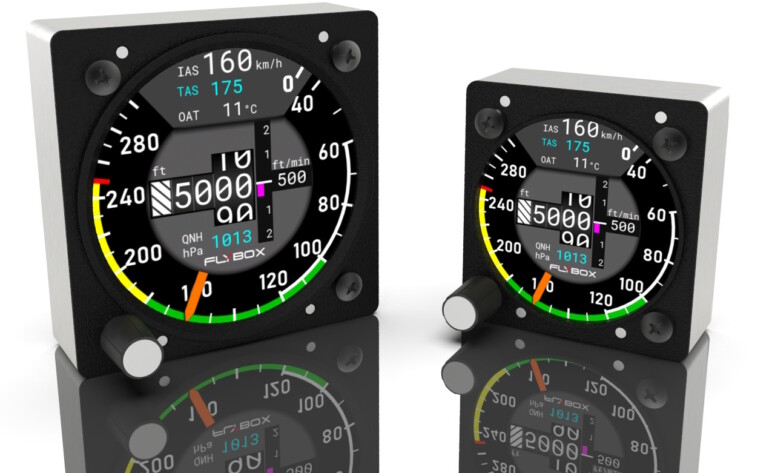

With an high brightness sunlight-readable display, configurable interface and CAN Bus connectivity, SkySense AS offers the precision of modern avionics while preserving the intuitive readability of traditional flight instruments. Available in 57mm and 80mm sizes, SkySense AS fits seamlessly into your dashboard.
Why choose SkySense AS?
- Full customization: user-configurable scales, units and styles allow you to tailor the instrument to your specific flying needs and preferences.
- Free pre-configuration: of the instrument is available upon request.
- Advanced features: TAS (True Airspeed) and Airspeed provide reliable data for safe and accurate navigation.
- Reliability and safety: The self-diagnostic system continuously monitors instrument health, minimizing risks and unexpected issues during flight.
- CAN BUS connectivity: Easy integration with other avionics systems onboard, creating a modern and functional cockpit.
- Reading comfort: Auto dimmer, Anti Glare TFT display and a 280° smart scale ensure optimal visibility in all lightnig conditions, from bright sunlight to twilight.
Customization choices

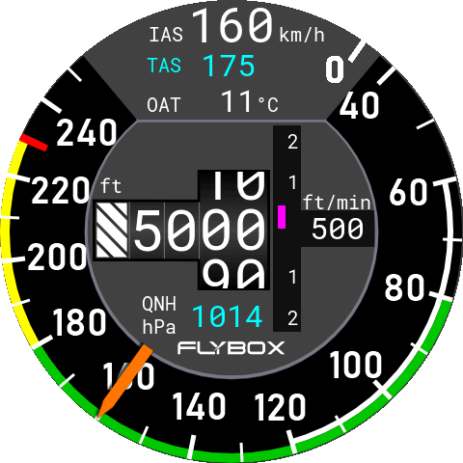

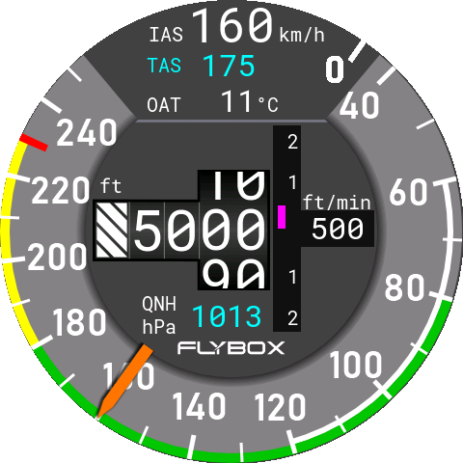

Light or Dark ASI Background

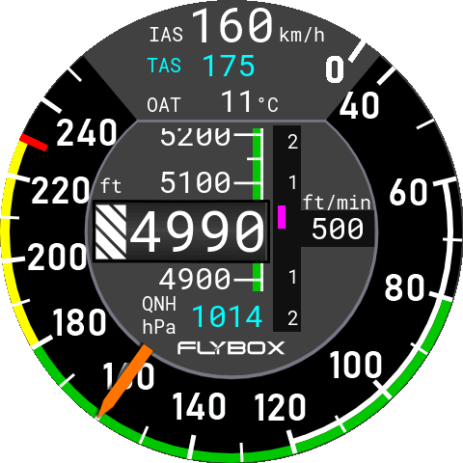

Tape or Drum Altimeter
Colored or neutral VSI numbers
Main features:
- Air Speed Indicator (Kmh, Mph, Kts)
- Drum or Tape Altimeter (Feet, Meters)
- VSI (Feet/m, Mt/s)
- Outside Air Temperature (°C, °F)
- True Air Speed (if the sensor is installed)
Interfaces:
- Knob with pushbutton
- CAN bus
- Light Sensor input
- USB 2.0 port
- Static and Pitot ports
- Can be connected in cluster with other Omnia instruments
