NEW OBLÒ2 IS READY !!
Starting from 1199 €
(Price exc.Vat)
Cod. 801002 Oblò2

See included and optional accessories
in the Components tab at the bottom
of the page

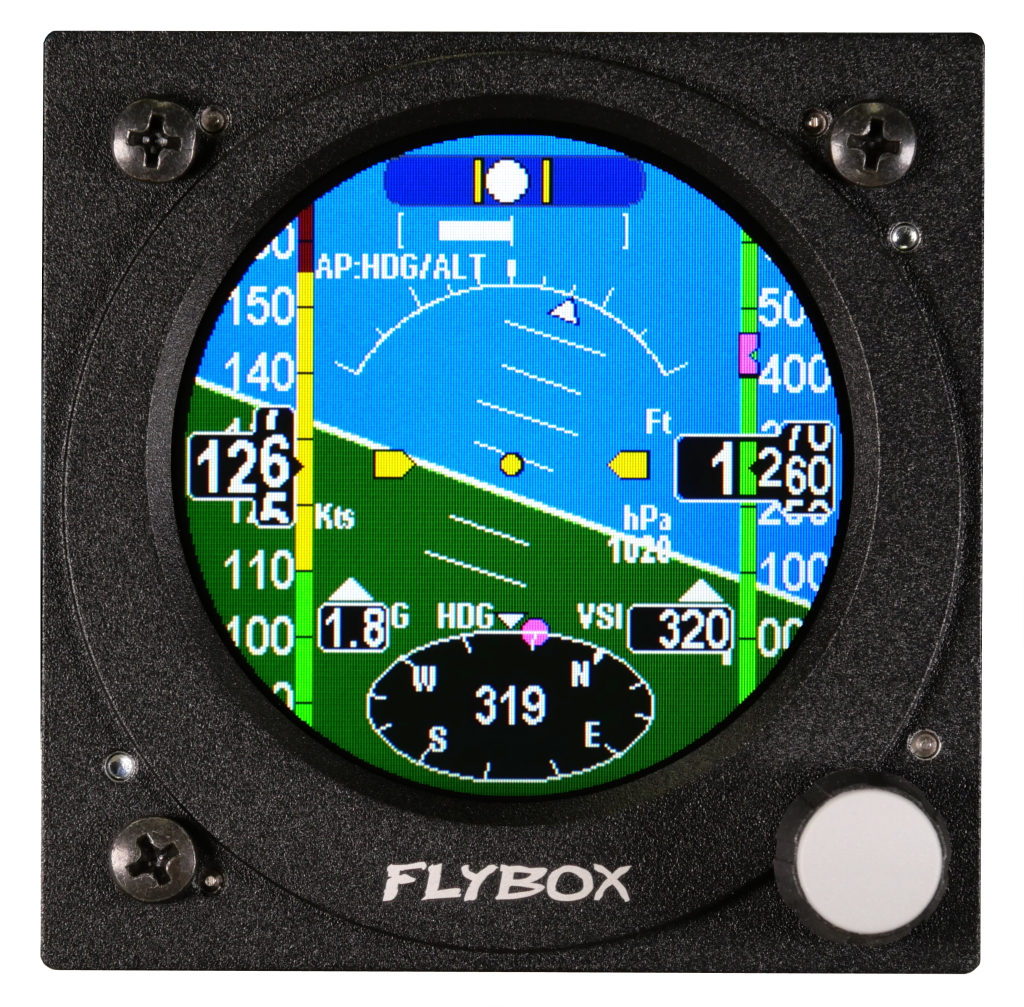

Oblò2 is the evolution of Oblò Standard to whose basic features it adds:
- new colours
- new graphics
- for the autopilot version Oblò2 A/P, the ability to receive flight plans from tablets and iPads via the optional Flybox Connect

If you already own a standard Oblò, you can upgrade it to Oblò2 by sending it to us. For more details contact us here.
OBLÒ
Starting from 1099 €
(Price exc.Vat)
Cod. 801000 Oblò Standard
Download manual here
English      Italiano
Oblò is a compact, lightweight, easy to install instrument that fits into a standard 3 1/8" (80mm) cutout.
With its round display it integrates:

- Digital attitude indicator
- Altimeter with QNH
- Air Spees Indicator
- Gyro Compass featuring magnetic heading and GPS tracking
- Vertical speed indicator
- Turn Rate Indicator
- Gmeter
- HSI & Gyrodirectional
- Measure and units are configurable.


Unlike other products similar in size, the Oblò does not display the speed and altitude taken from a GPS system, but calculates them by itself.
Gps signal can be taken from the Flybox optional antenna (cod. 810010) or any of the Gps device with NMEA output available on the market.
The airspeed and altitude indications, based on pressure sensors, do not suffer the typical delays and errors of GPS-based indications.

Oblò displays true aircraft attitude thanks to the integrated AHRS inertial platform, equipped with solid-state micromachined sensors (gyros, accelerometers and magnetometers) and an adaptive algorithm.
Using a state of art custom TFT LCD, the display visibility results to be at the best standards also in direct sunlight with an adjustable brightness.
The calibration performed for each instrument guarantees for the altimeter a maximum error of 0.5 millibar (4.6meters) in a temperature range of -20 ~ +70°C and an altitude range of -1000 ~ +25,000 feet and for the airspeed a maximum error of 3 km/h at low speed (below 30km/h), which decreases as the speed increases.

Oblò provides the following three screens that is possible to select with a fast turn or the knob.
Main screen - Attitude indicator
Easily readable menu cells, with auto-zoom on the selected item allowing access to the desired informations in a easy and intuitive way and parameters settings.
This picture shows the reading of the G-meter peak memory.
HSI
(horizontal situation indicator)
Hsi screen, when connected with a GPS via Nmea output, provides current position, direction, distance when a GoTo or a Flight Plan is activated; When not connected with GPS, it is a gyrodirectional.
Master altimeter
With the new improved feature Oblò becomes a real drum altimeter that allows to set the reference pressure in the QNH boxes in hPa as well as in Hg.
FLIGHT DATA:
  • Attitude indicator
  • Airspeed tape
  • Altitude tape
  • Heading tape
  • Vertical Speed Indicator
  • G-meter with peak memory
  • Slip indicator
  • Turn rate indicator
  • Target bugs may be set for heading and altitude
  • GPS receiver (optional)
  • Intercom signal out
  • Software upgradable by means of USB port

OTHER FUNCTIONS:


Technical specifications:

    • Dimensions: 83 x 83 x 61 mm
    • Weight: 300 g
    • Operating temperature range: -20 ~ +70°C
    • Power supply: 10~20 Vdc, 0.26 A
    • Connections via DSUB 15 pin connector
    • Brightness: 1200NITS, adjustable
    • USB port for software updates
    • RS232 and CAN communication ports
    • Solid-state sensors
    What is included:
    • Oblò or Oblò2 instrument
    • Printed user manual (ENG version)
    • DB15 connector
    • USB cable
    • M4x10mm screws
    • 120 ohm resistor
    • Microfibre cloth
    • Packing list

    Optional accessories:
    - Cod. 801020 A/P key (required to add the Autopilot functions to a standard Oblò Cod. 801000 and to Oblò2 Cod. 801002)
    - Cod. 802000 Ready to use wiring for Oblò standard
    - Cod. 802010 Ready to use wiring for Oblò A/P - Oblò2 A/P
    - Cod. 601090 GPS receiver module
    - Cod. 810020 Oblò Battery Backup
    - Cod. 801030 Flybox Connect kit (include Flybox Wi-Fi USB Dongle and Flybox Connect Wi-Fi activation key)

    OBLÒ REPEATER
    For side by side aircraft
    For tandem aircraft
    The Oblò Repeater is the slave instrument for who wants to have always an eye on the attitude also from the backseat, it features the same three screens of the main unit. Oblò Repeater must be connected to a main Oblò to allow the viewing of all the flight and gps data. The settings are indipendent between the two instruments (it is possible to set a different unit of measure)
    Oblò REP
    Starting at 590 €
    (Price exc.Vat)
    Cod. 801001 Oblò Rep
    Oblò2 REP
    Starting at 590 €
    (Price exc.Vat)
    Cod. 801003 Oblò2 Rep
    Add a software key cod. 801020 to an existing Oblò standard or buy the ready Oblò A/P version cod. 801010 to have the complete functionalities
