Sensors and Accessories

(all components that are not instruments are listed here)

- Cod. 604010 - € 7.00 (exc. VAT)

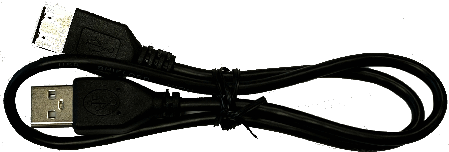

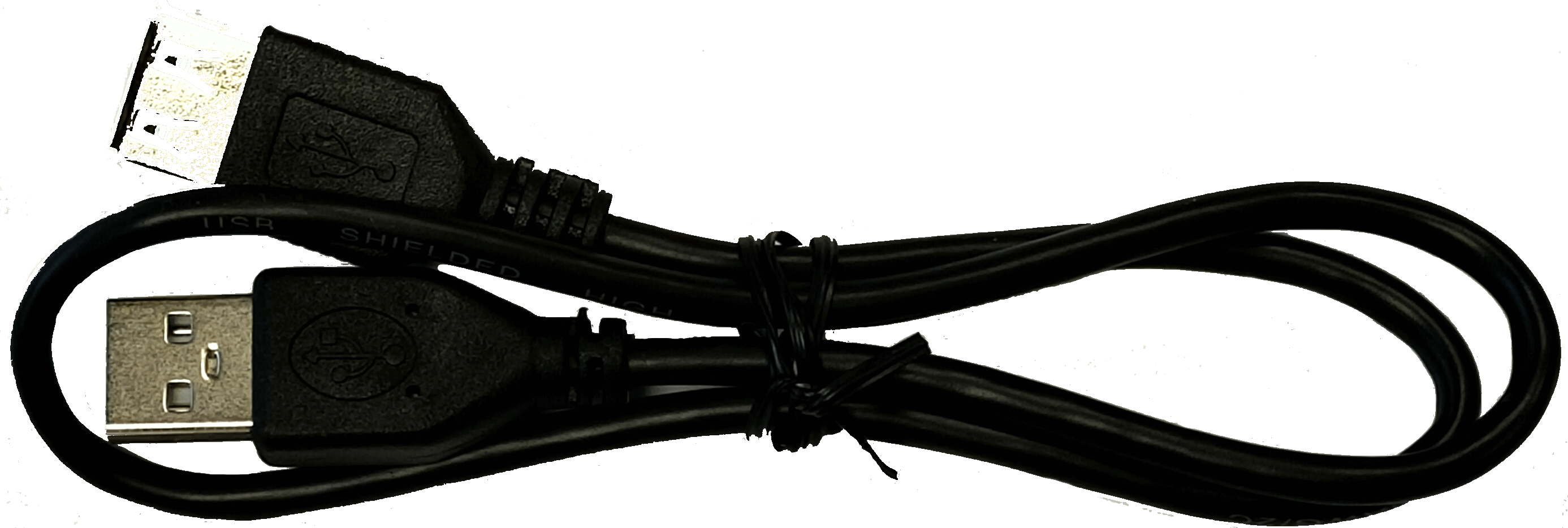

USB Extender Cable 0.5Mt
Recommended for instruments that have the USB connection behind the panel such as the Omnia57-80 series and Eclipse NG. Avoid disassembling the panel every time you need to access the USB port to perform operations such as updating software or backup-restore parameters, etc.

- Cod. 105898 - € 20.00 (exc. VAT)

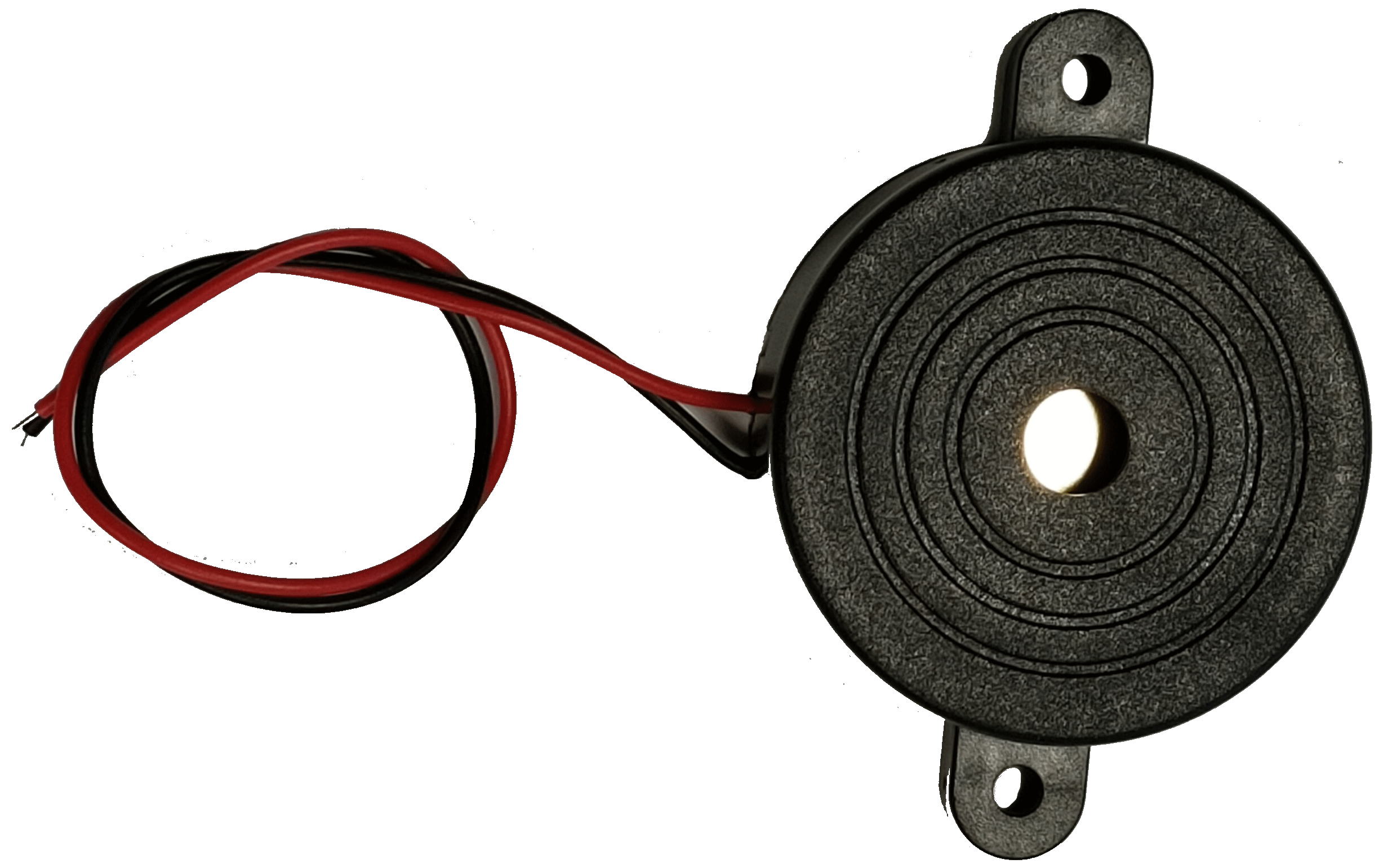

Alarm Buzzer for Omnia series
It is strongly recommended to use it with Omnia LIFT. The use of an external buzzer ensures that the alarm signal is never filtered out by the intercom or radio settings, as it is completely isolated from them. It can also be used for the other instruments in the Omnia57-80 series.

- Cod. 105896 - € 65.00 (exc. VAT)

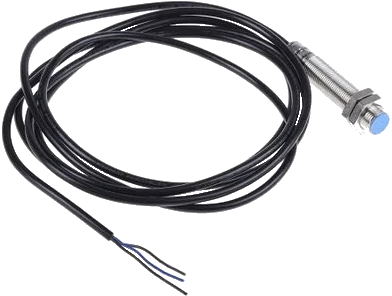

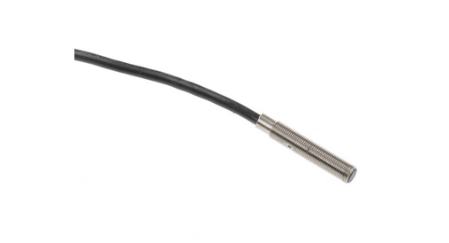

Flybox inductive sensor 12mm
Used for engine tachometers and rotor meters, deliver a signal 0 to 12V.

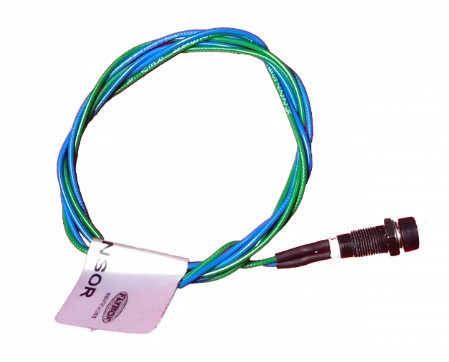

Pre-wired light sensor for Omnia57 series. One sensor will supply light signal to all the Omnia57 instruments linked in the same CAN bus. Not required if you want to manually adjust the instruments backlight.
- Cod. 105800 - € 12.00 (exc. VAT)
Wired Ambient Light sensor

Use two 105810 to terminate the CAN bus line if you have two or more Omnia57 instruments linked via CAN bus.
You do not need it if install one Omnia57 instrument only.
- Cod. 105810 - € 5.00 (exc. VAT)
CAN termination 120 ohm

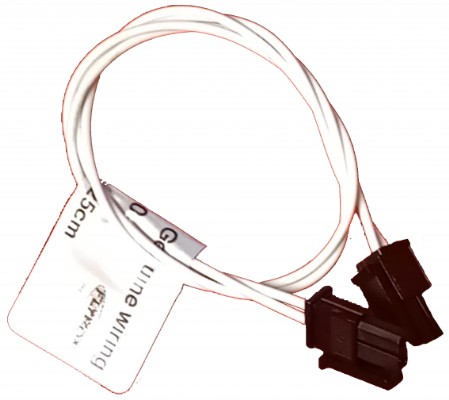

Used to connect the CAN bus between two Omnia57 instruments.
If you are installing 2 Omnia57, you need 1 cable, if installing 3 Omnia57, need 2 cables, etc...
Chose between 3 different lenght, 25, 50 or 100 cm.
- Cod. 105820 - € 7.50 (exc. VAT)
CAN bus cable 25 cm

Used to connect the CAN bus between two Omnia57 instruments.
If you are installing 2 Omnia57, you need 1 cable, if installing 3 Omnia57, need 2 cables, etc...
Chose between 3 different lenght, 25, 50 or 100 cm.
- Cod. 105830 - € 8.00 (exc. VAT)
CAN bus cable 50 cm

Used to connect the CAN bus between two Omnia57 instruments.
If you are installing 2 Omnia57, you need 1 cable, if installing 3 Omnia57, need 2 cables, etc...
Chose between 3 different lenght, 25, 50 or 100 cm.
- Cod. 105840 - € 8.50 (exc. VAT)
CAN bus cable 100 cm

Used for tachometers and rotor meters, deliver a signal 0 to 12V
- Cod. 105897 - € 99.00 (exc. VAT)
Flybox inductive sensor

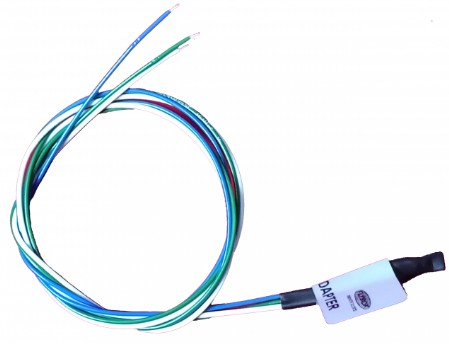

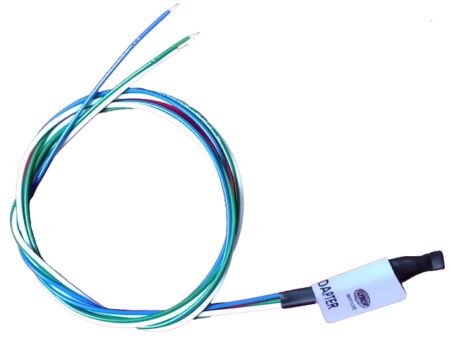

Connected to the alarm output of an Omnia57 instrument, it generates an alarm tone that can be sent to the intercom.
To connect more than one Audio Tone Alarm, use an audio mixer.
- Cod. 105899 - € 12.00 (exc. VAT)
Audio Tone adapter

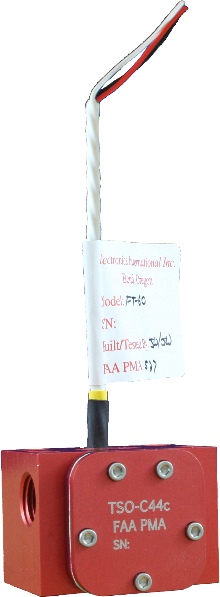

The Red Cube FT 60 has considerably less pressure drop than other units on the market and a blocked rotor does not effect ressure drop. Also the overall accuracy and linearity of the Red Cube FT-60 is superior to most other flow transducers.
Fuel flow range: 0.6 to 70 Gal/Hr.
- Cod. 503030 - € 199,90 (exc. VAT)
RedCube Fuel Flow transducer

- Cod. 601008 - 69,90 (exc. VAT)

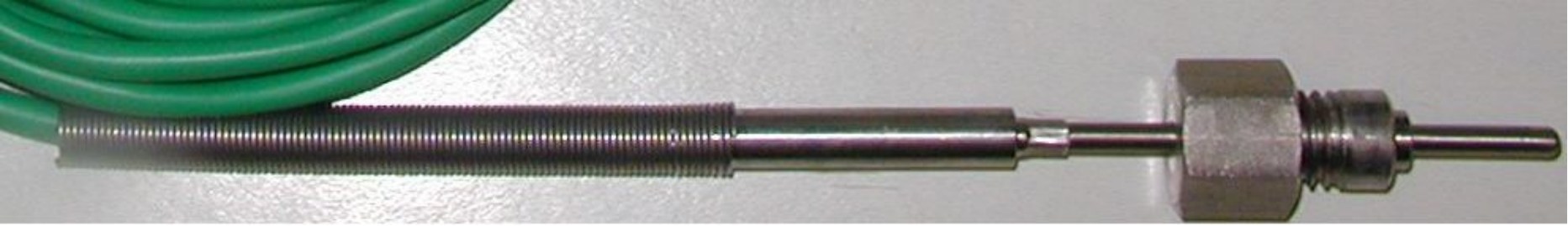

EGT probe with 2.5 m cable + compensated connectors + coupling fitting to weld

- Cod. 601012 - 23.00 (exc. VAT)

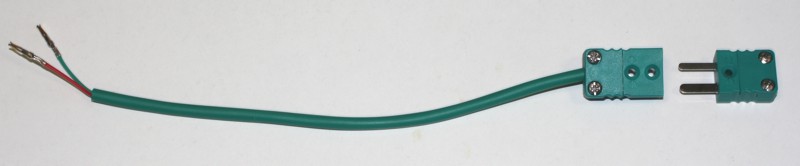

Pre-wired 20 CM cable for EGT probes + compensated connectors
For Eclipse
Normally the ready-made wiring for Eclipse instruments we supply have 2 connections for EGT probes. In case you want to install 4 EGT probes, you will need to buy 2 of them separately.

Normally the ready-made wiring for Vigilus instruments we supply have 2 connections for EGT probes. In case you want to install 4 EGT probes, you will need to buy 2 of them separately.
- Cod. 601013 - 23.00 (exc. VAT)
Pre-wired 20 CM cable for EGT probes + compensated connectors
For Vigilus - Omnia

- Cod. 601020 - € 40,50 (exc. VAT)

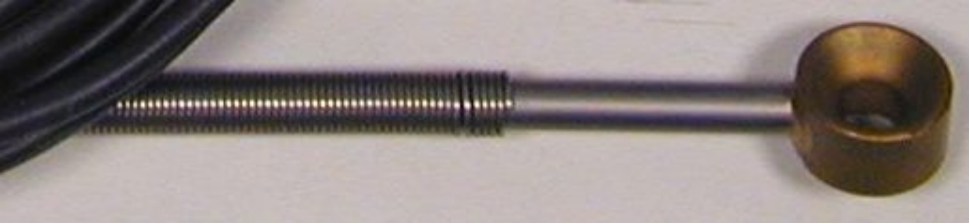

OAT probe (Outside air temperature) with 2.5 m cable

- Cod. 601030 - € 26.00 (exc. VAT)

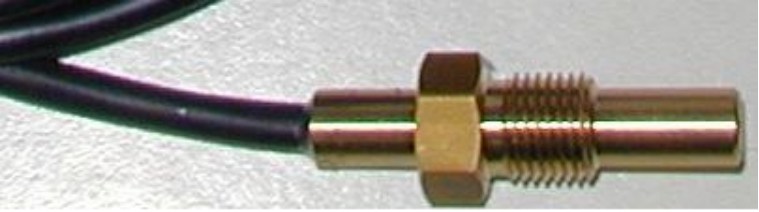

CAT probe (Rotax Airbox temperature) 10x1 thread, 2.5 m cable

- Cod. 601041 - 98.00 (exc. VAT)

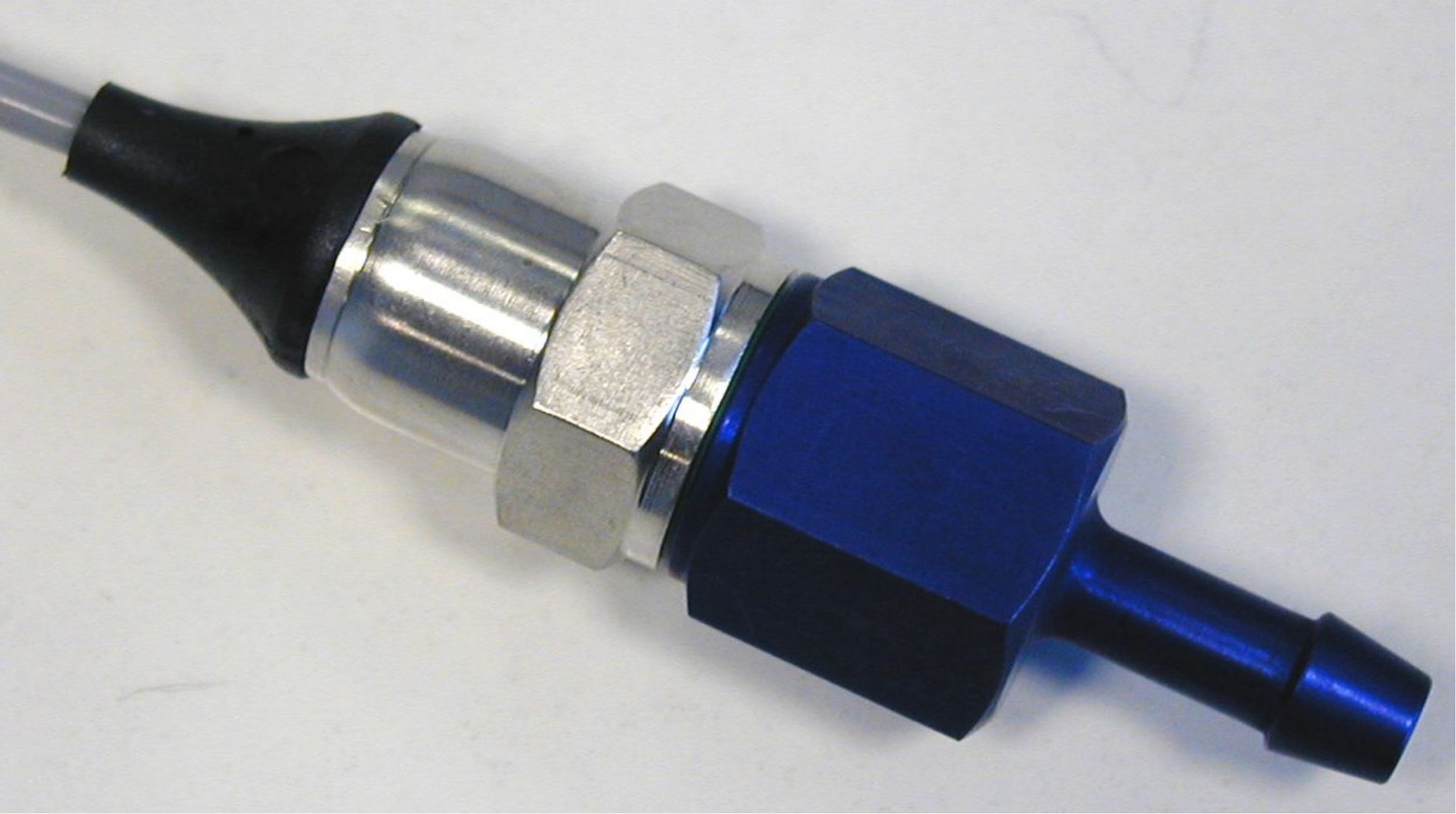

Fuel pressure transducer, 0-4 bar with 2.0 m cable + aluminum fitting
Fuel pressure probe for all our instruments.

- Cod. 651055 - 100,00 (exc. VAT)
Vigilus Fuel Computer Page Software Activation Key
Some users are not interested in having the Fuel Computer function on their Vigilus. For this reason we have made this feature a paid feature only for those interested in having it, allowing you to save money in case you are not interested.

- Cod. 653000 - 180,00 (exc. VAT)

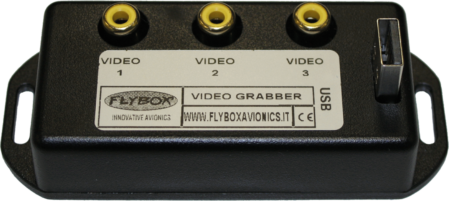

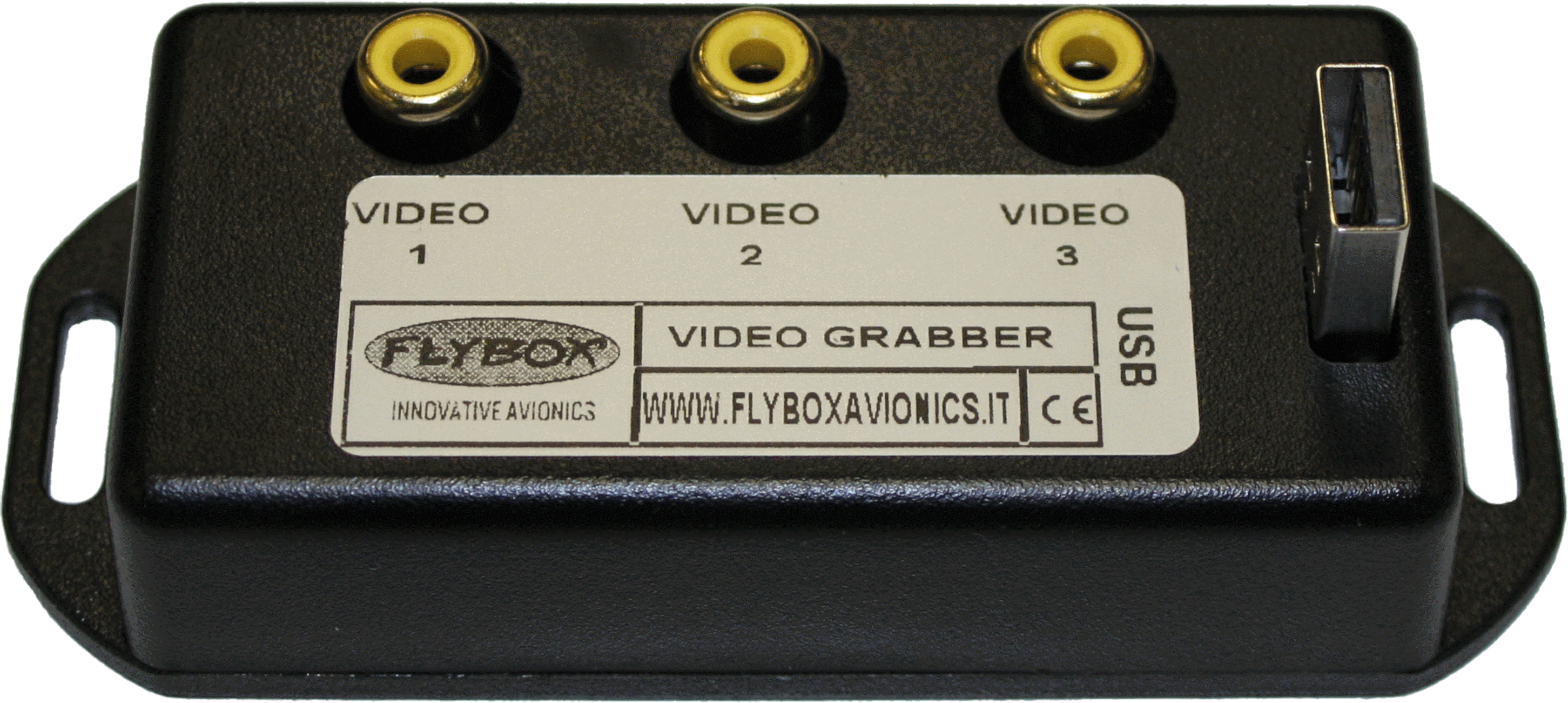

Vigilus Video Grabber
Only works with PAL output cameras.
Simply plug it into the USB socket of Vigilus, connect 1 to 3 cameras to the RCA sockets of the device to display the images on the 3.5 inch screen.

- Cod. 601090 - € 99,00 (exc. VAT)

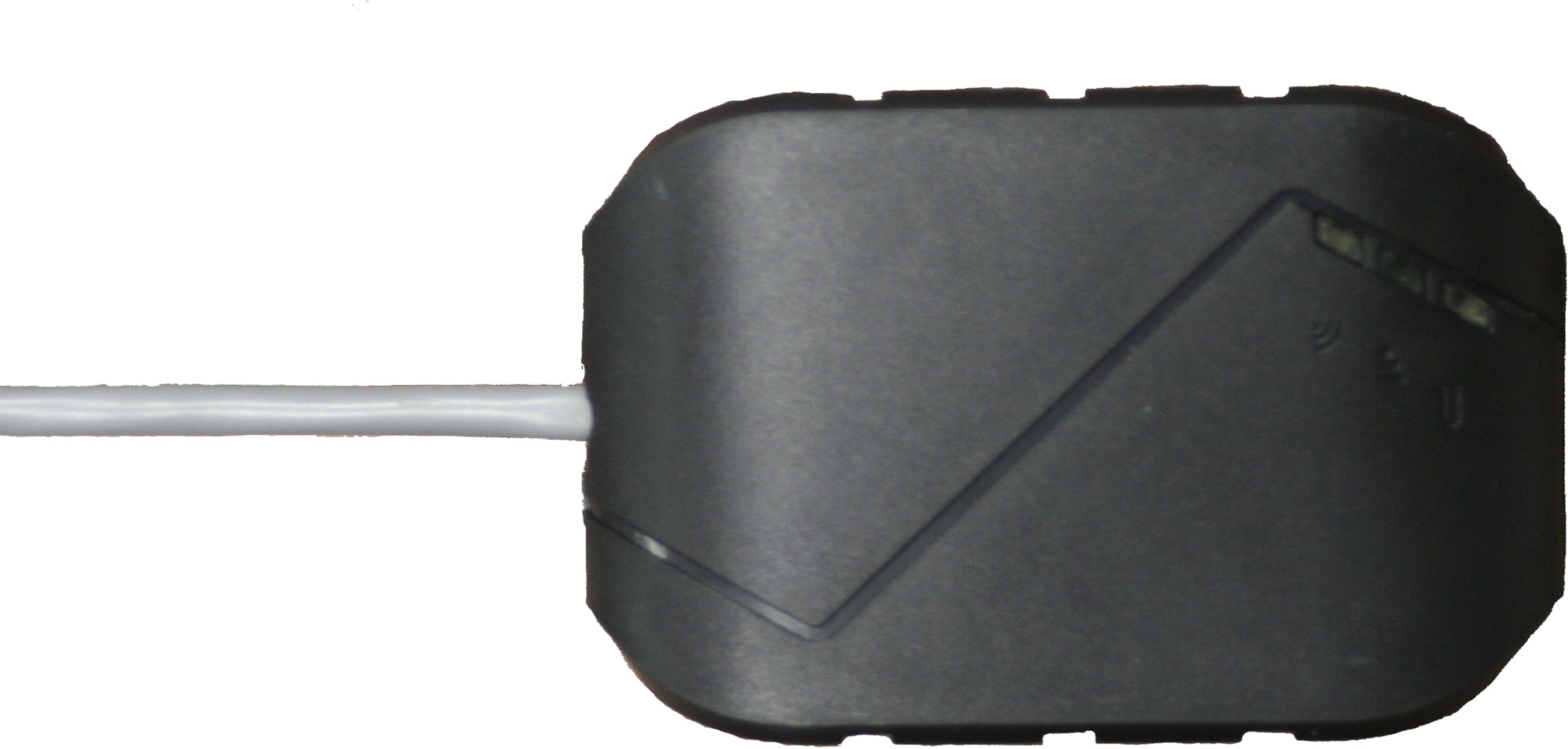

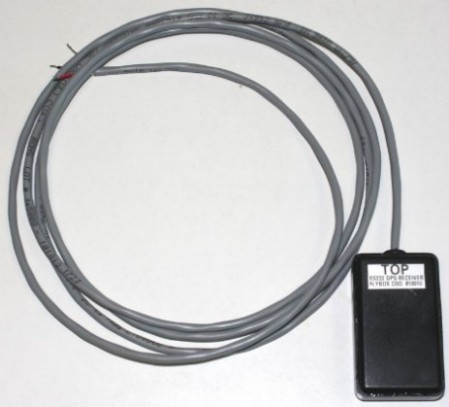

Oblò - Vigilus - Omnia GPS Receiver
If you don't have any GPS device featuring NMEA output on your aircraft, you can buy this module to provide Oblò, Vigilus and Omnia with Gps signal.
In the Oblò, it will enable the Tracking indications and will also be used for automatic correction of the magnetic declination and to perform the magnetic calibration procedure.

- Cod. 801020 - 199.00 (exc. VAT)
A/P key, required to add the Autopilot functions to a standard Oblò Cod. 801000 or to Oblò2 Cod. 801002)
If you have already purchased Standard Oblò or Oblò2 and now want to add the Autopilot function, you can do so with this activation software key.

- Cod. 601060 - 45.00 (exc. VAT)

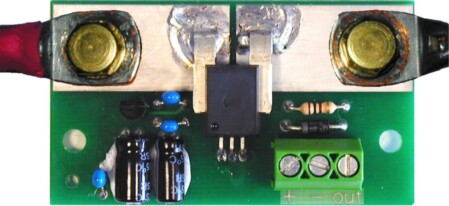

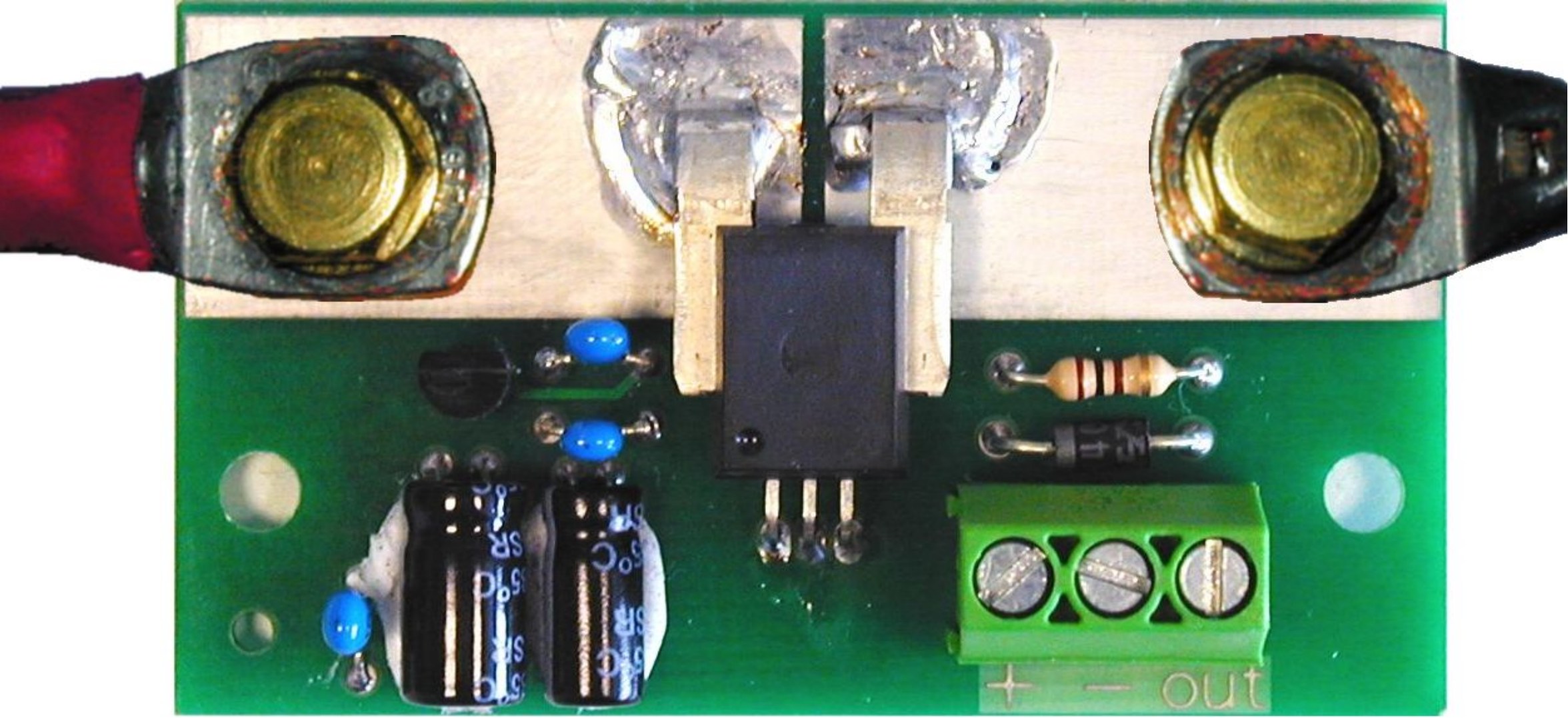

Ammeter probe, 50 A
- Cod. 601061 - 45.00 (exc. VAT)
Ammeter probe, 100 A
Current sensor for our instruments that have the function of Amprometer. The sensor is not a simple shunt but is powered at 14V.

- Cod. 601070 - € 149.00 (exc. VAT)

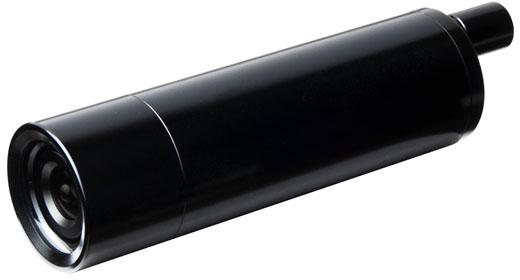

Color camera for use with our Eclipse and Vigilus instruments.
PAL system.

- Cod. 602000 - 160.00 (exc. VAT)

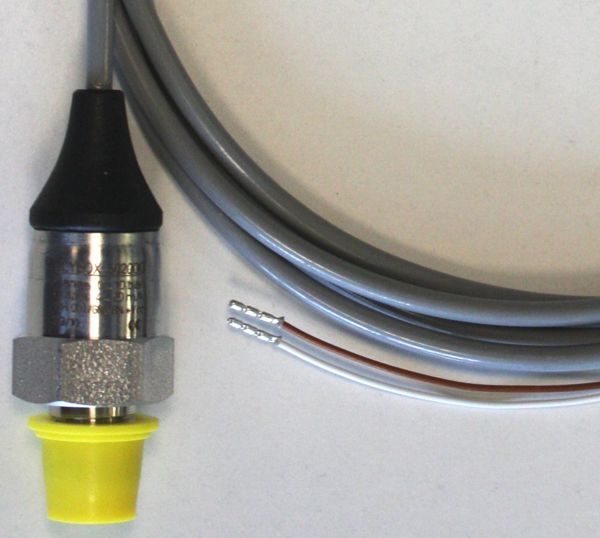

Oil pressure probe, Rotax 4-20mA compatible, with 1/8" NPT male thread

- Cod. 603000 - 39.00 (exc. VAT)

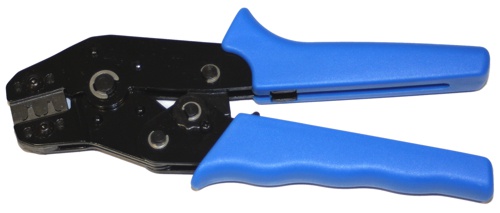

Professional crimping tool

Allows you to safely crimp the pins of the Molex Micro-Fit connectors used in our Omnia57 and Vigilus series instruments.

- Cod. 402000 - 190.00 (exc. VAT)
External lever for PR1-P
Through this remote control to be connected to the PR1-P regulators it is possible to adjust the engine RPM instinctively as if it were a lever of a traditional hydraulic aeronautical governor, push the lever forward to have all the RPM.

- Cod. 402010 - € 49.50 (exc. VAT)
Ready to use wiring for PR1-P

- Cod. 652010 - 220.00 (exc. VAT)

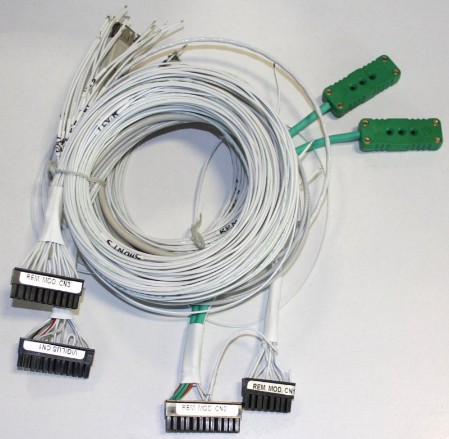

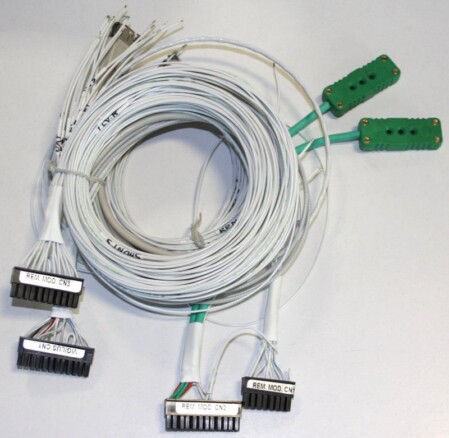

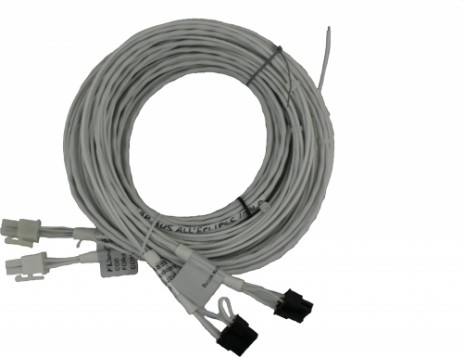

Wiring for Vigilus and Remote Module (for Rotax912/914 engines)

- Cod. 652011 - 220.00 (exc. VAT)
Wiring for Vigilus and Remote Module (for Rotax912iS/915iS engines)

- Cod. 652020 - 235.00 (exc. VAT)
Wiring for Vigilus EP and Remote Module (for Edge Performance engines)

- Cod. 701071 - € 125.00 (exc. VAT)
Ready to use wiring for ACU - Servos

- Cod. 802000 - € 49.50 (exc. VAT)

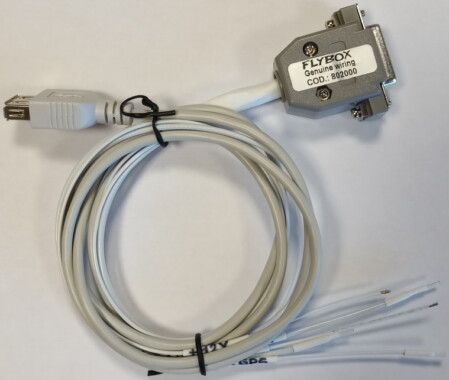

Ready to use wiring for Oblò standard

- Cod. 802010 - € 99.00 (exc. VAT)

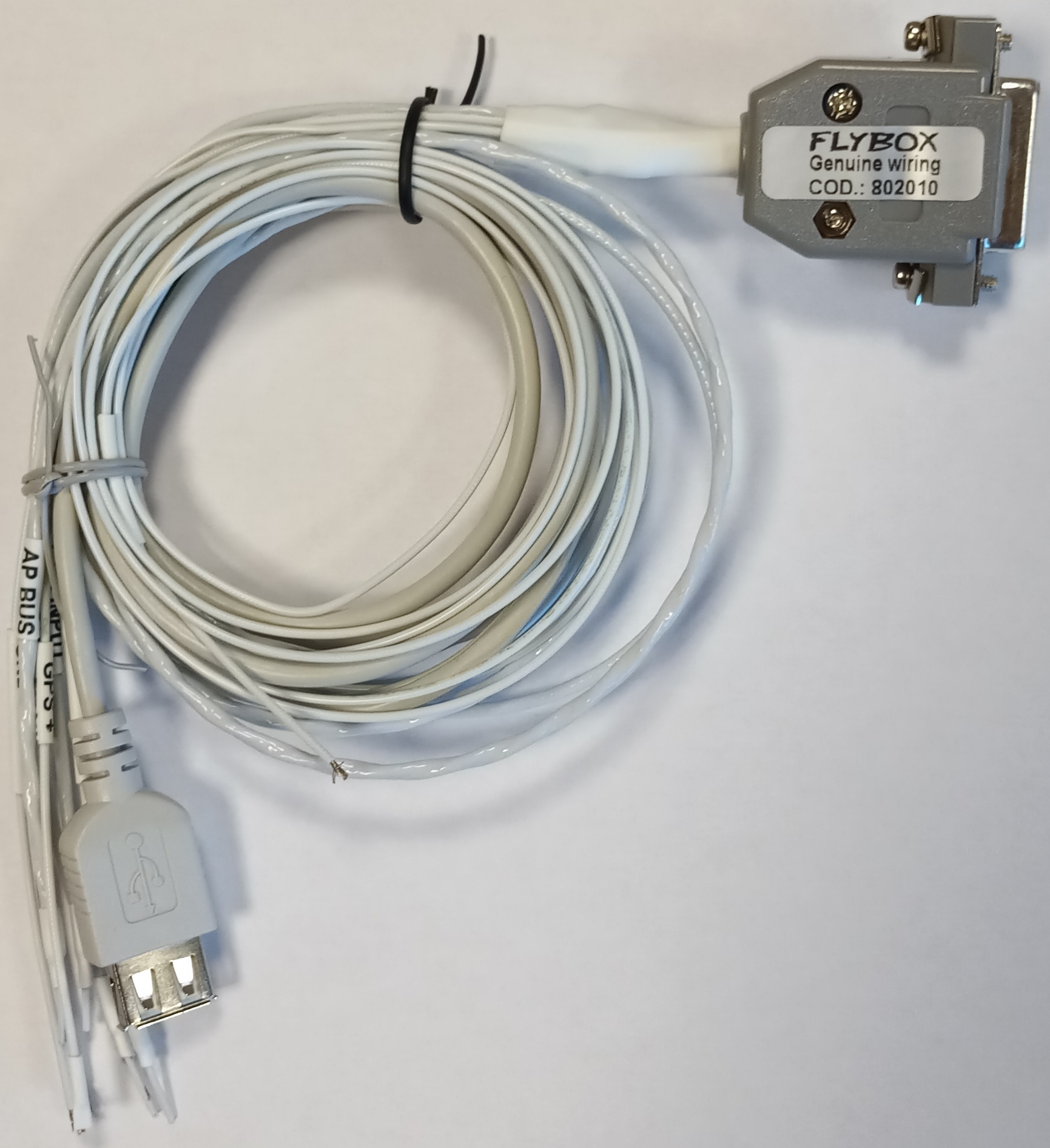

Ready to use wiring for Oblò A/P - Oblò2 A/P

- Cod. 802020 - € 44.00 (exc. VAT)

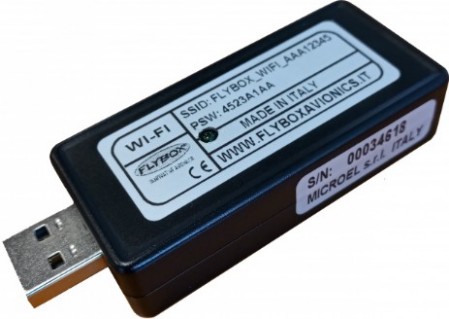

Wi-Fi USB Dongle
The Wi-Fi USB Dongle is used by Oblò2 autopilot version only to communicate with mobile devices on which the Flybox Connect APP application runs.
Flight plans or navigation data sent from the mobile device will be received by Oblò2 A/P via the Wi-Fi dongle.
The connection is password protected. This ensures that only the authorized device communicates with your Oblò.
Requires activation with key Cod. 801021.
Technical specifications:
  • Power supply: 5 VDC
  • Power consumption: 110 mA
  • Humidity range: 5 ~ 90 % non condensing
  • Operation temperature: -30 ~ +80 °C
  • Dimensions: 77 x 30 x 15 mm
  • Weight: 22 gr.

- Cod. 801021 - € 95,00 (exc. VAT)
Flybox Connect Wi-Fi activation key
This software key allows your A/P Oblò to connect to mobile devices via Wi-Fi.
See here for more.

- Cod. 810020 - € 116,00 (exc. VAT)

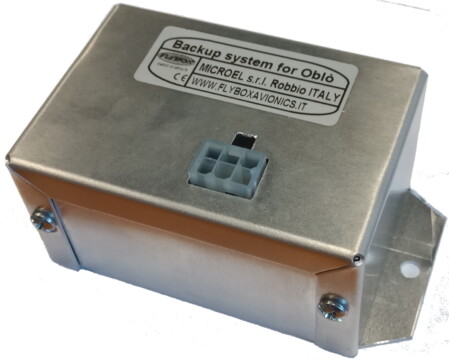

Oblò Battery Backup
This device was designed to drive one Oblò or other instruments.
The device use Ni-Mh batteries because safer than Lithium.
With the battery charged and in good condition Oblò will works for more than 3 hours.
The output current limit is 0.45 Amps.

- Cod. 703010 - € 8.00 (exc. VAT)

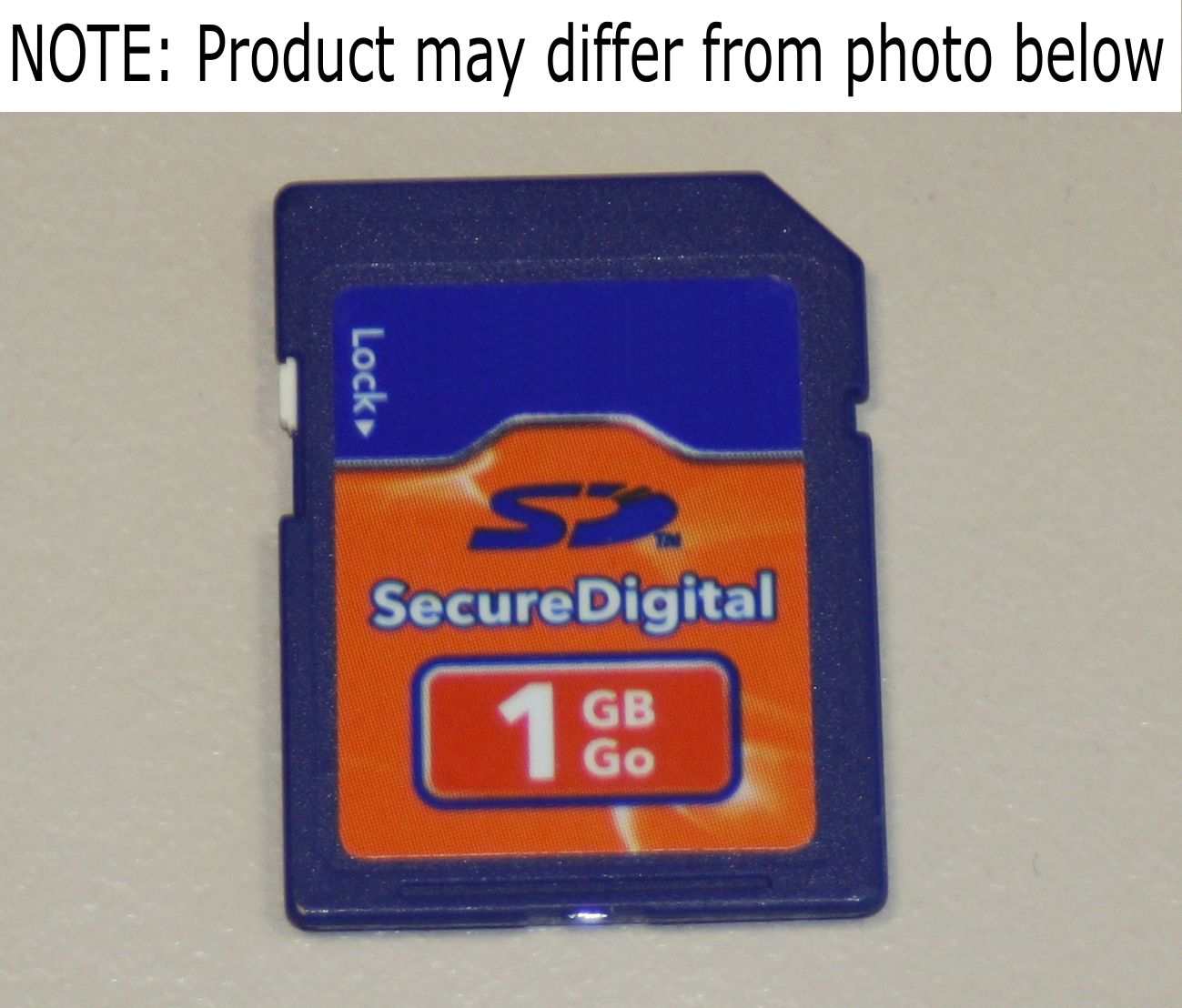

SD Card 1GB for ECLIPSE

- Cod. 703020 - 47.00 (exc. VAT)

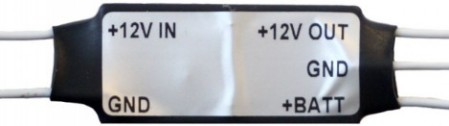

Battery Backup
This device keeps the power to the connected electrical instruments when missing the main power and during engine ignition. Must be connected to a battery (12V 2A, available on request, Cod. 703030) that is automatically charged when the main power is present. If main power fails, the electrical instruments continue to work for a certain amount of time. Used with ECLIPSE, with a backup battery in good conditions and fully charged, the autonomy is about 1 hour with one ECLIPSE connected.
Main features and specifications:
  • Connections through aeronautic cables, 20 cm length
  • Dimensions: 70 x 25 x 8 mm
  • Operating temperature range: -20~+70°C
  • Supply voltage: 12 ~ 15 V=
  • Max current supplied to the connected instruments: 3 Ampere
  • Supply current (device only): 110 uA (microAmpere)

- Cod. 703030 - 25.00 (exc. VAT)

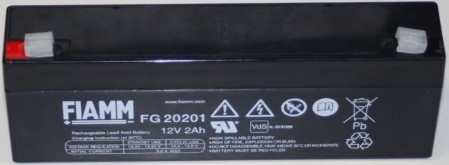

12V 2A Lead Battery (Dim. 18 x 6.5 x 3.5 cm)
Used for battery Backup Cod. 703020

- Cod. 104000 - € 139.00 (exc. VAT)
Position Transducer for Flap Controller EFC57P
  • Aluminum case with mounting brackets
  • Dimensions: 32 x 32 x 173 mm
  • Usable electrical stroke: 102 mm
  • Electrical resistance: 3 Kohm
  • Weight: 220 g
  • Operating temperature range: -30/100°C
  • Shock resistance: 50 G
  • Operating life: 100 millions operations
  • IP54 class

- Cod. 105000 - € 199.00 (exc. VAT)

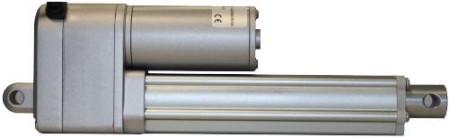

Linear Actuator for Flap Controller EFC57P
  • Internal potentiometer
  • Internal limit switches
  • Metal gears
  • Stroke: 100 mm
  • Length (retracted): 260 mm
  • Fixing holes diameter: 8 mm
  • Pulling force max.: 1000 N
  • Speed: 8 mm/s
  • Supply voltage: 12 VDC
  • Max. current: 3 A
  • Weight: 1160 g
  • Working temperature: -20+70 °C
